Series K

Compact blower consisting of: main blower (heating and support air) and reserve blower

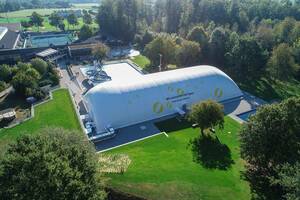

Air domes are used for national and international events, sports facilities and industrial purposes. The technical equipment is adapted individually to each project and customers‘ requirements.

Compact blowing unit consisting of:
- Main blower (heating and supporting air)
- Stand-by engine

NOLTING – Inflation Technique for Air Domes

Inflation unit as warm air heater for the heating media oil / gas / electricity / warm water and steam.
Inflation unit as cooling units for the cooling media cold water and refrigerating agent
Inflation unit as cold air blower, driven by electric or diesel engine (stand-by unit).
Also available in engine room cubicles as weatherproof housing.

NOLTING – Additional Control Systems for Air Domes

Automatic control systems for operating safety, such as hall pressure-dependent control, wind-dependent control, snow-dependent control, alarms.

NOLTING - Entrance Elements for Air Domes

Emergency doors, revolving doors – also as combination models – passenger air locks, forklift air locks, truck air locks with or without electric door drive.

Further information:

Product sheet series K

Technical Data:

Type of unit		K 140/D	K 180/D	K 250/D	K 300/D	K 350/D
Nominal heat loading capacity	kW	181	233	323	388	452
Rated heat output	kW	163	210	291	349	407
Air output main blower	m³/h	10,400	14,400	20,000	24,000	26,000
Air output stand-by engine	m³/h	10,000	12,000	14,000	16,000	20,000
External pressure	Pa	300
Motor power	kW	4.0	5.5	7.5	11.0	2 x 5.5
Length, incl. air intake grid	mm	4,300	4,700	4,700	4,700	5,900
Width, without supply air / return air connection piece	mm	1,290	1,670	1,670	1,760	2,300
Height	mm	1,150	1,380	1,380	1,380	1,840
Supply air	ø mm	800	1,000	1,000	1,000	1,200
Return air	ø mm	600	800	800	800	1,000
Waste gas	ø mm	250	300	350	350	450
Weight without burner	kg	1,400	1,800	1,800	1,900	3,200

Type of unit		K 480/D	K 580/D
Nominal heat loading capacity	kW	620	750
Rated heat output	kW	558	675
Air output main blower	m³/h	35,000	44,500
Air output stand-by engine	m³/h	25,000	30,000
External pressure	Pa	300
Motor power	kW	2 x 7.5	2 x 11.0
Length, incl. air intake grid	mm	5,900
Width, without supply air / return air connection piece	mm	2,300
Height	mm	1,840
Supply air	ø mm	1,200
Return air	ø mm	1,000
Waste gas	ø mm	450
Weight without burner	kg	3,500	3,700

Version: 2013-06.2
