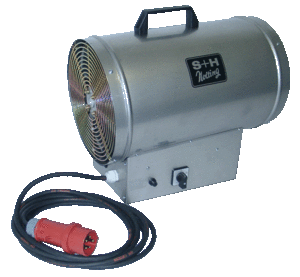

NE Series

Electric warm air heater with the possibility of driving via room thermostat, intended for the drying of buildings, heating of smaller party tents as well as for agricultural use - heating of smaller breeding and mast facilities.

NE 6/9 and NE 9/15

For the employment in stock farming
Intended for the drying of buildings
Heating of party tents

Substantial advantages of the units:

Fully automatic operation
Most simple operation
Application in rooms with low ventilating ratio
Case of stainless steel
Ready for connection via supply line with CEE or shock-proof plug
Two grades of the heating output can be chosen
External room thermostat can be connected

Further information:

Product sheet series NE

Technical Data:

Type of unit		NE 6 / 9	NE 9 / 15
Model		Stainless steel
Nominal heat loading capacity	kW	6 - 9	9 - 15
Mode of operation		two-stage
Air capacity	m³/h	900	1,400
Current consumption	A	13	23
Electric supply	V/Hz	3~400 / 50
Length	mm	500	580
Width	mm	320
Height	mm	470
Weight	kg	17	20
Possibility of control		Possibility of connecting a room thermostat with cable (extras)

Version: 2013-06
