NG-L 30 to 100 Series and NG-LE 10

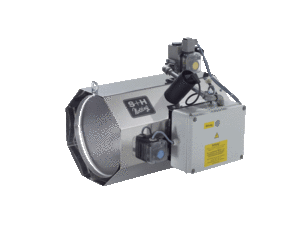

Series: NG-LE

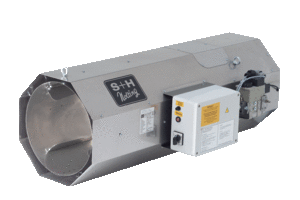

Series: NG-L

Gas fired warm air heater for stable heating as fully automatic system with infrared flame monitoring, electrical ignition and supporting air blower and open combustion chamber for operation without exhaust system. The unit can be switched over from one to the other gas type by only changing the nozzle and new setting of pressure.

NG-L-30 to NG-L 100 - For natural gas and LPG

NG-LE-10 - For natural gas only

Electric mains with shock-proof plug Gas connection ¾“ or ½“ internal screw thread Casing and combustion chamber made of stainless steel Low-maintenance burner Splash-proof switch box Drive via room thermostat or ventilating control possible Automatic ignition Three-point suspension by adequate attachtment eyes

Further information:

Product sheet series NG-L and NG-LE

Technical Data:

Type of unit		NG LE 10	NG L 30	NG L 50	NG L 80	NG L 100
Nominal heat loading capacity	kW	10	30	50	80	100
Gas		Natural gas only	Natural gas and LPG	Natural gas and LPG	Natural gas and LPG	Natural gas and LPG
Category		I 2 E	II 2 ELL 3 B/P	II 2 ELL 3 B/P	II 2 ELL 3 B/P	II 2 ELL 3 B/P
Supply pressure	bar	0.02	0,02 bzw. 0,05	0.02 or 0.05	0.02 or 0.05	0.02 or 0.05
Connected load	kg/h	-----	2.33	3.89	6.23	7.78
Air capacity	m³/h	500	1,600	2,300	4,100	7,500
Electric supply	V/Hz	230 V / 50 Hz
Rated current	A	0.3	0.85	1.0	2.9	3.7
Throw	m	15	30	40	50	60
Length	mm	500	990	990	1,150	1,250
Width	mm	450	445	510	560	640
Height	mm	450	312	365	410	510
Weight	kg	16	35	41	45	56
Product ID-No.		CE-0085 BN 0001

Version: 2018-08
