Gustav Nolting GmbH - Modern heating techniques Air heating techniques

DG Series

Reliable in use - worldwide

Nolting pressure control systems in compact constrution
with fish plates for wall mounting.

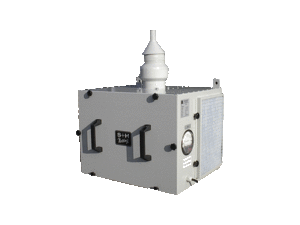

Our units DG-500 are technically fully developed and
daily proof thousands of times worldwide
as safe blowers for air cushion roofs.

Additional control DG-500 (possible)

- Min. pressure alarm
- Max. pressure alarm
- optical and audible signal
- battery with maintenance charging
- on / off switch for alarm system

Type of unit		DG 500-1	DG 500-2	DG 500-3	DG 500-4
Air capacity	m³/h	500	500	500	490
External pressure	Pa	560	450	450	540
Supply air connecting piece	mm	ND 50
Acoustic level	dB(A)	53	50	53	53
Motor power	kW	0.37	0.12	0.12	0.15
Air intake		with filter F 5
Type of current	V/Hz	230 / 50	230 / 50	230 / 50	110 / 60
Length	mm	600	600	400	600
Width	mm	500	500	450	500
Height	mm	450	450	400	450
Weight	kg	40	35	30	40

Version: 2021-01
