DG-400

DG-400
DG-400
DG-400
DG-400

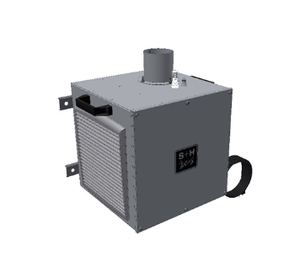

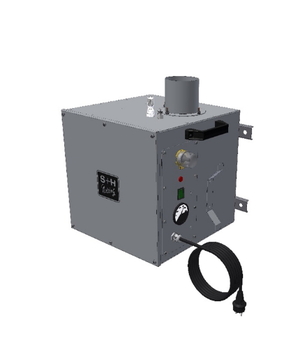

Nolting - pressure control blower
made of aluminium for permanent operation

  • max. air outlet up to 1,000 m³/h
  • efficent fan motor (conformity to ERP)
  • variable-speed fan motor
  • pressure setting at pressure switch
  • pressure metering in one cushion
  • pressure reading at unit
  • low noise operation
  • carrier handle
  • low weight



Additional control:
  • Min. pressure alarm
  • Max. pressure alarm
  • optical and audible signal
  • battery with maintenance charging
  • on / off switch for alarm system
TÜV Cert

Further information:

Series DG-400

Technical Data:

Type of unit
DG-400
Air capacity   m³/h  up to 1,000
External pressure   Pa  up to 600
Supply air connecting piece   mm  ND 50
Motor power   kW  0.170
Type of current   V/Hz  230 / 50
Length   mm  400
Width   mm  400
Height   mm  465
Weight   kg  20
Air intake     with filter
Blow-out connection     without non-return valve

Version: 2024-07
